DIY peep sight for my shortened single break barrel 12G

Post by SHV » 18 Feb 2020, 7:28 pm

always like peep sight

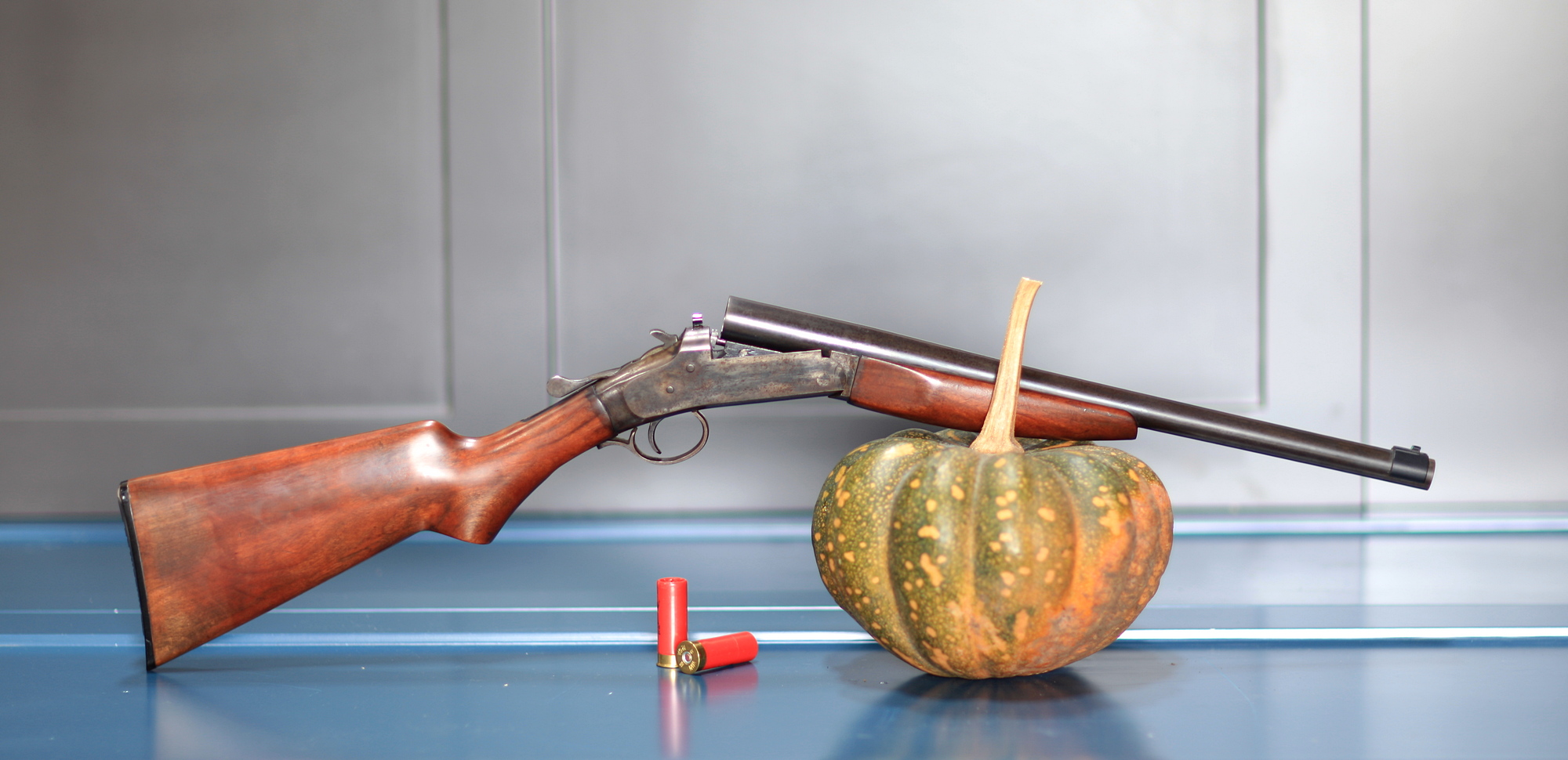

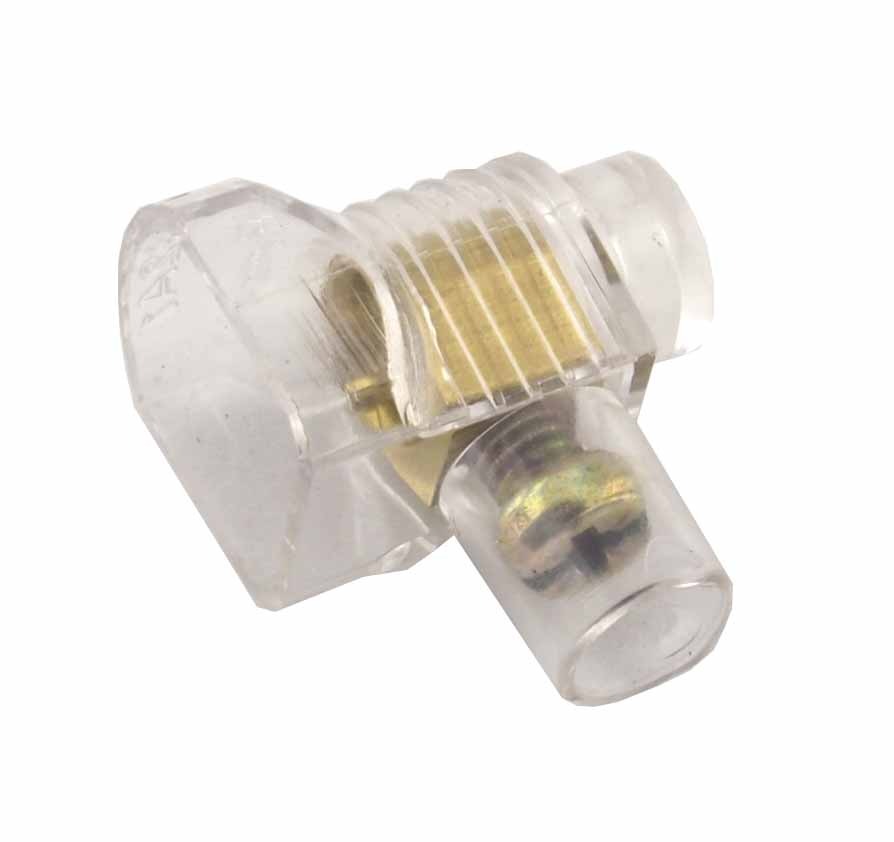

after cut 30 inch barrel to 20 and thinking maybe use slug for hunting, I got this in my hand, a connector...

SHV
Warrant Officer C2
Warrant Officer C2

Posts: 1008
New South Wales

Re: DIY peep sight for my shortened single break barrel 12G

Post by SHV » 18 Feb 2020, 7:30 pm

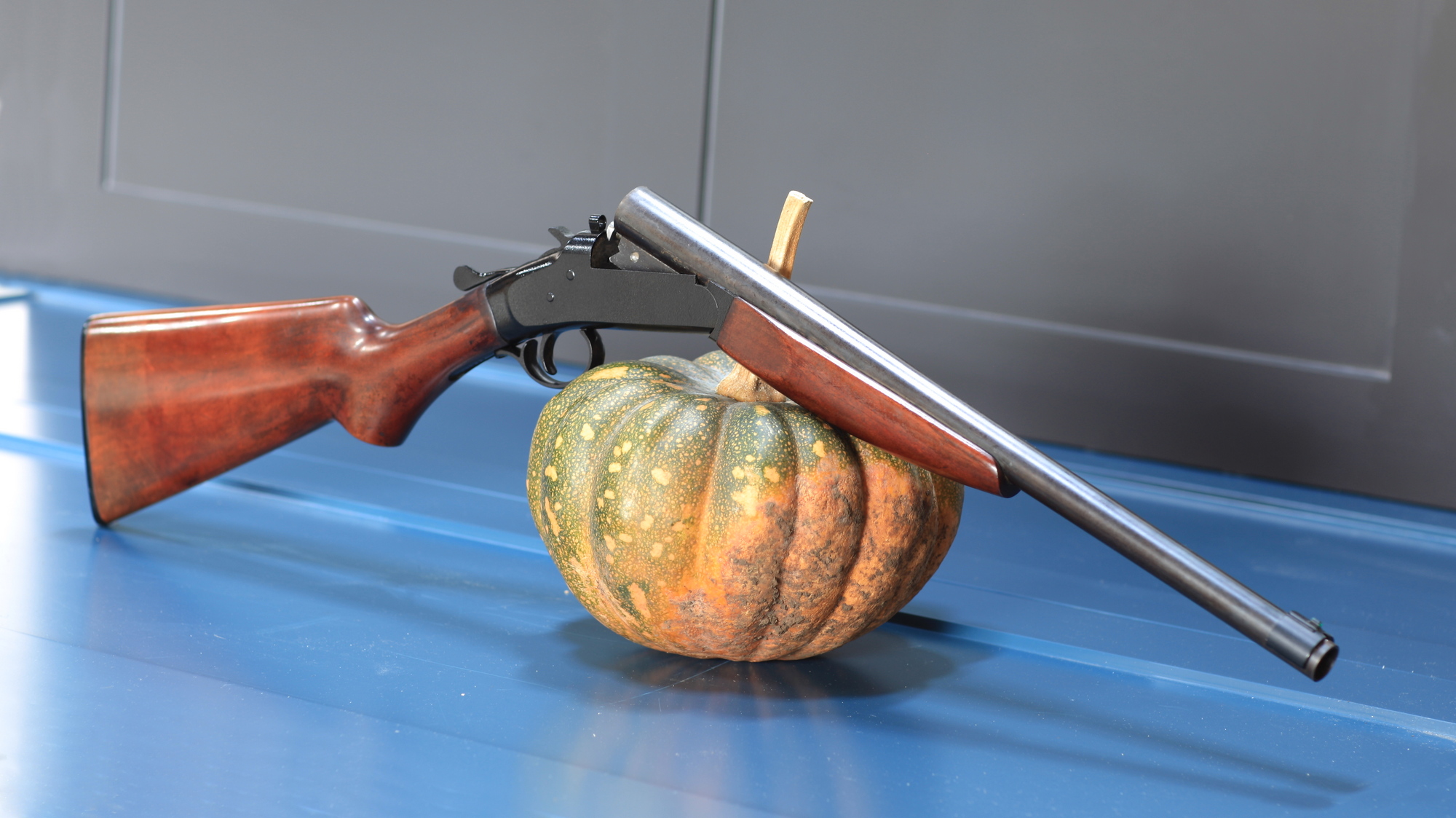

the metal parts fit in the deep screw hole on the action perfectly so now I have a shotgun with peep sight :lol:

SHV
Warrant Officer C2
Warrant Officer C2

Posts: 1008
New South Wales

Re: DIY peep sight for my shortened single break barrel 12G

Post by SHV » 18 Feb 2020, 7:38 pm

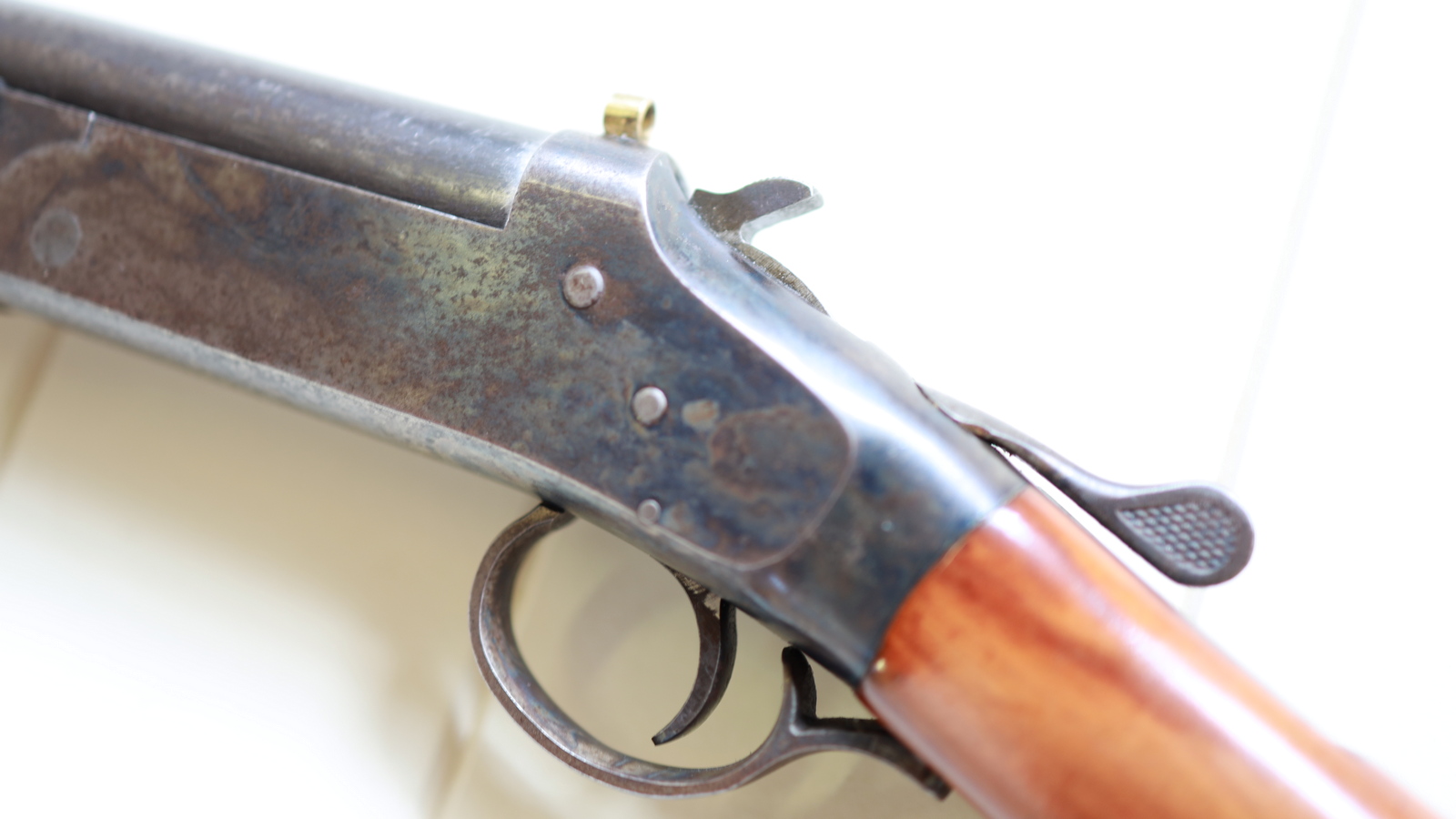

it fits there very tight, need shorten the screw length and the base of the ring part to make the rear peep sight height as low as possible, just need a fill and 5 minutes, easy job

after install it is really solid no movement at all but still put a little AB glue to secure

SHV
Warrant Officer C2
Warrant Officer C2

Posts: 1008
New South Wales

Re: DIY peep sight for my shortened single break barrel 12G

Post by SHV » 18 Feb 2020, 7:45 pm

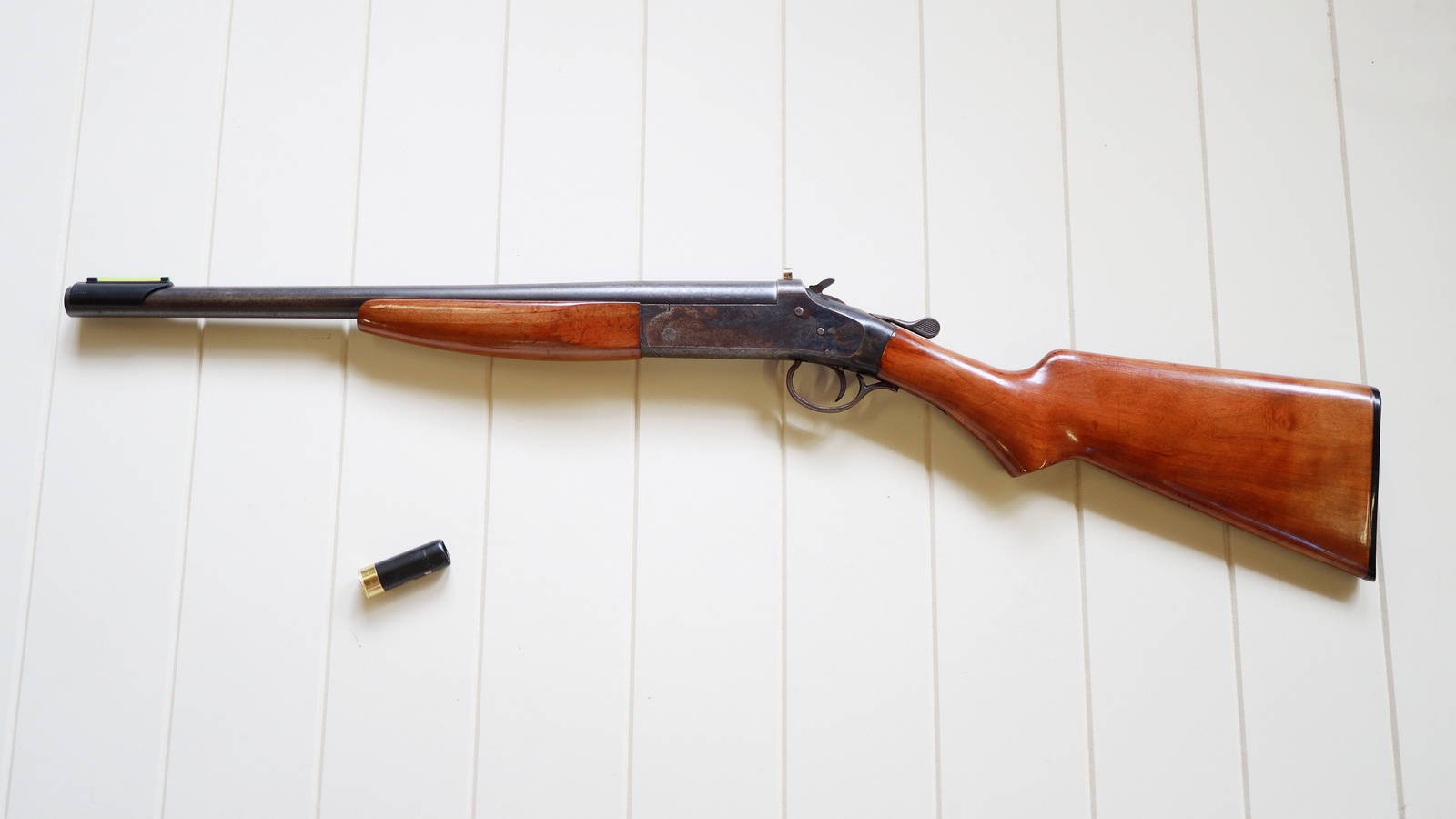

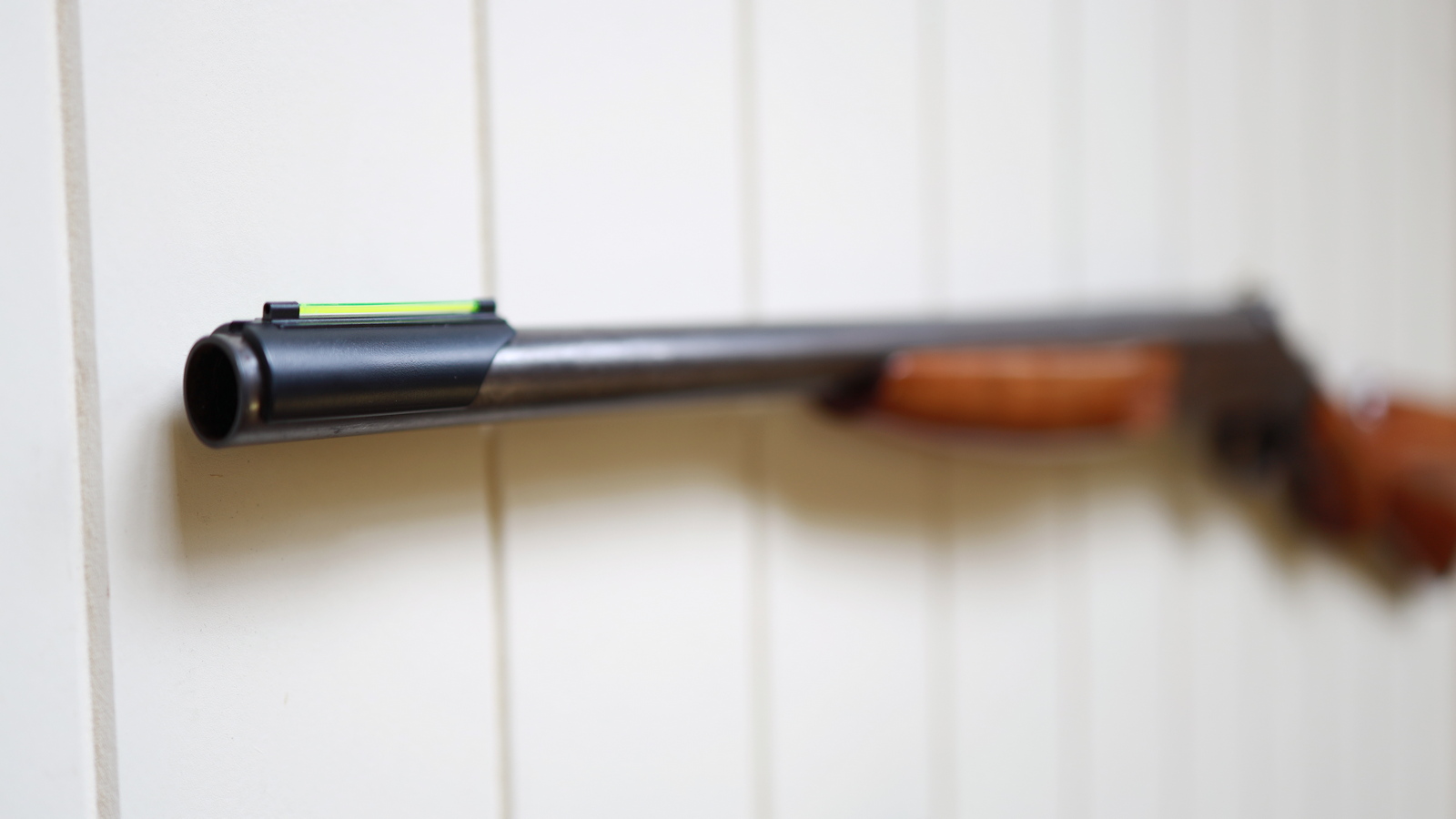

front sight is truglo universal 12g sight, easy to adjust windage

SHV
Warrant Officer C2
Warrant Officer C2

Posts: 1008
New South Wales

Re: DIY peep sight for my shortened single break barrel 12G

Post by SHV » 18 Feb 2020, 7:51 pm

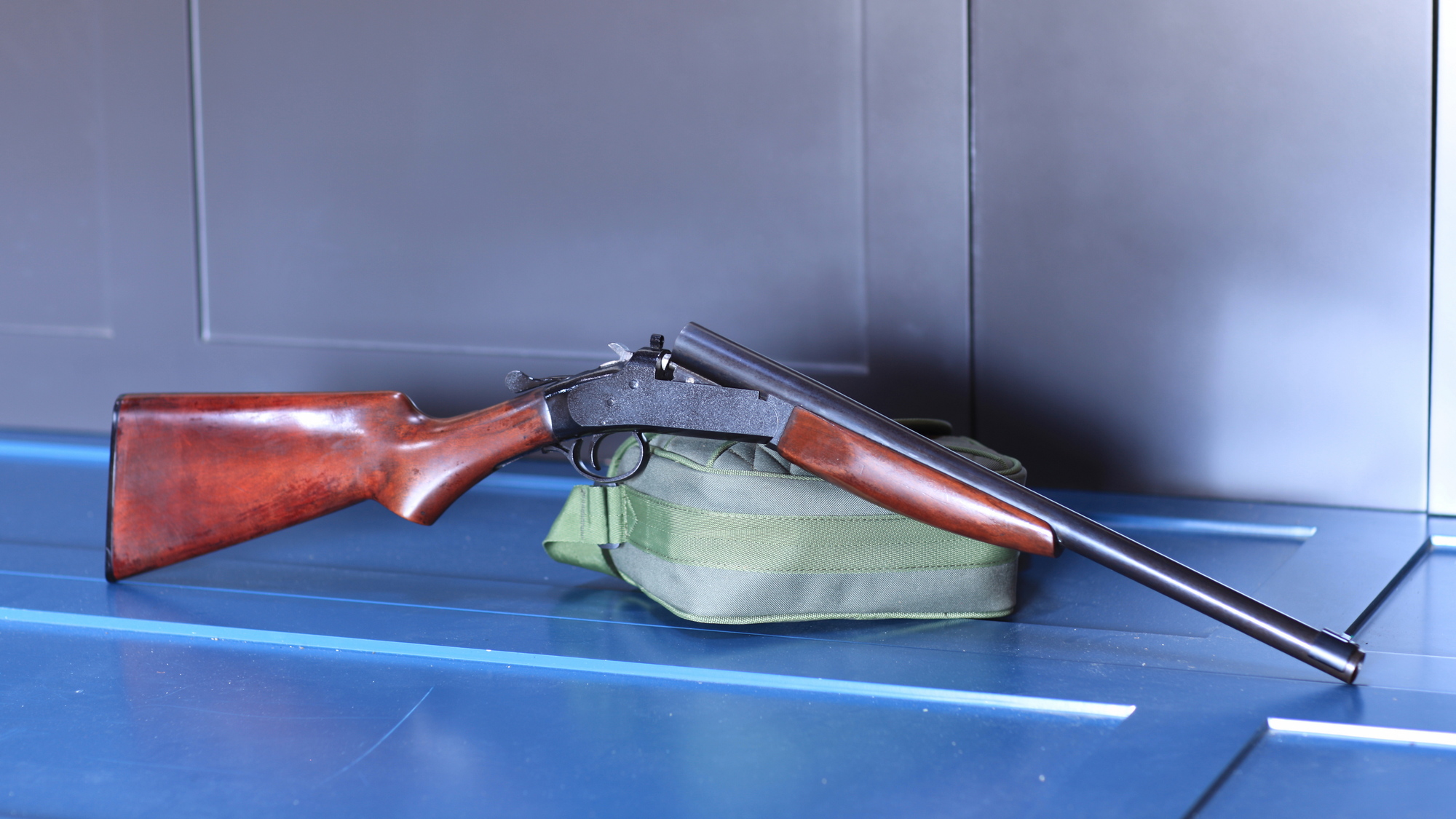

the peep sight is not on the end of the barrel, but this old girl (made in Japan) lockup very tight, should be alright
the ring size fits the purpose perfectly, just like some "combat" sight on rifles, the sight picture is big and still provide good reference for aiming

SHV
Warrant Officer C2
Warrant Officer C2

Posts: 1008
New South Wales

Re: DIY peep sight for my shortened single break barrel 12G

Post by bladeracer » 18 Feb 2020, 7:57 pm

I love that!
Practice Strict Gun Control - Precision Counts!
User avatar
bladeracer
General
General

Posts: 7333
Victoria

Re: DIY peep sight for my shortened single break barrel 12G

Post by SHV » 18 Feb 2020, 8:13 pm

bladeracer wrote:I love that!


thanks :D
short, handy rifle/shotgun with peep sight (and truglo type front sight) always my best-loved
SHV
Warrant Officer C2
Warrant Officer C2

Posts: 1008
New South Wales

Re: DIY peep sight for my shortened single break barrel 12G

Post by SHV » 29 Feb 2020, 10:04 pm

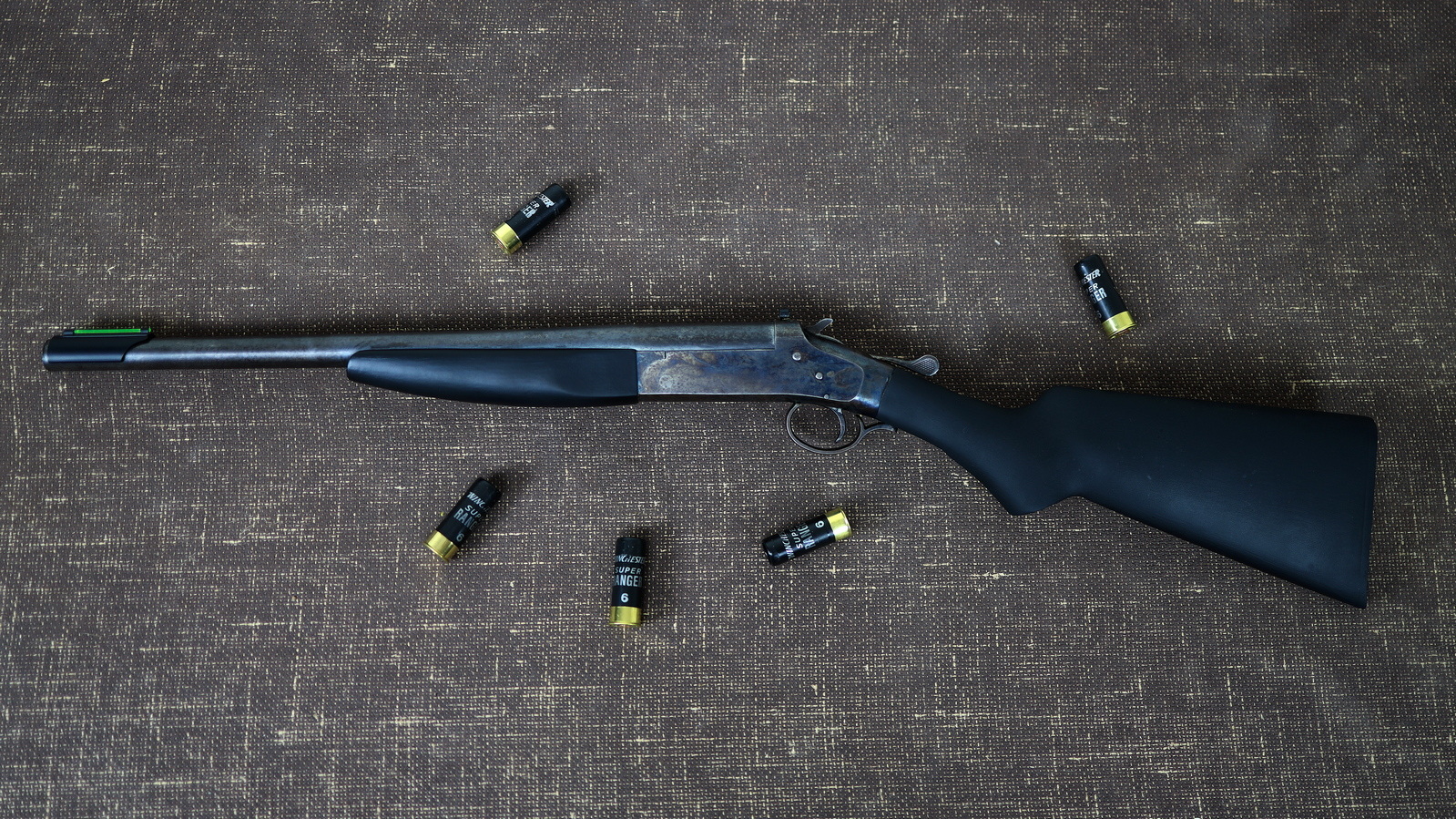

my "new" “tactical” single barrel break action shotgun :lol:
SHV
Warrant Officer C2
Warrant Officer C2

Posts: 1008
New South Wales

Re: DIY peep sight for my shortened single break barrel 12G

Post by perentie » 01 Mar 2020, 5:48 am

I have done the same to mine. Bought the same front sight but its too low. The gun is a Boito and has a high comb so I cant get my face low enough. So I bought another front sight, a higher one that clamps to the barrel then make a higher rear to suit. May go for a Lyman tang sight like on my old Winchester Low wall. I can do that as there is no lever on the tang. The trigger guard moves back. I also bought the reamers etc and threaded it for chokes. Yours has a lower comb on the stock than mine. An advantage.
perentie
Lance Corporal
Lance Corporal

Posts: 175
Queensland
