A weird mag or a weird fix? Lee Enfield No.1 MKIII

Bolt action rifles, lever action, pump action, self loading rifles and other miscellaneous longarms.

A weird mag or a weird fix? Lee Enfield No.1 MKIII

Post by SHV » 08 Nov 2024, 9:51 am

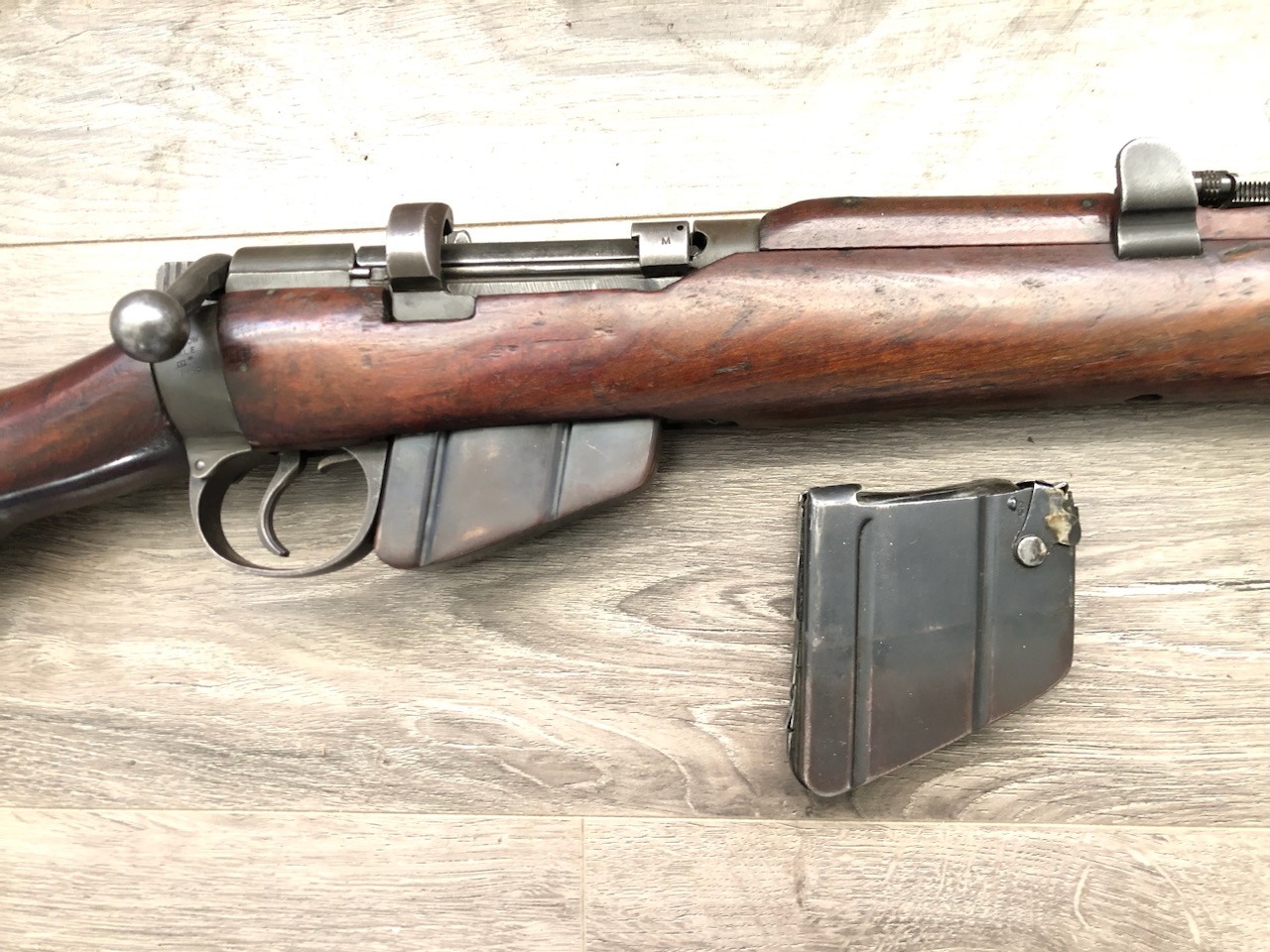

Got a rifle and find out the mag there is something special
SHV
Sergeant Major
Sergeant Major

Posts: 1624
New South Wales

Re: A weird mag or a weird fix? Lee Enfield No.1 MKIII

Post by SHV » 08 Nov 2024, 9:52 am

SHV
Sergeant Major
Sergeant Major

Posts: 1624
New South Wales

Re: A weird mag or a weird fix? Lee Enfield No.1 MKIII

Post by SHV » 08 Nov 2024, 9:53 am

SHV
Sergeant Major
Sergeant Major

Posts: 1624
New South Wales

Re: A weird mag or a weird fix? Lee Enfield No.1 MKIII

Post by SHV » 08 Nov 2024, 9:55 am

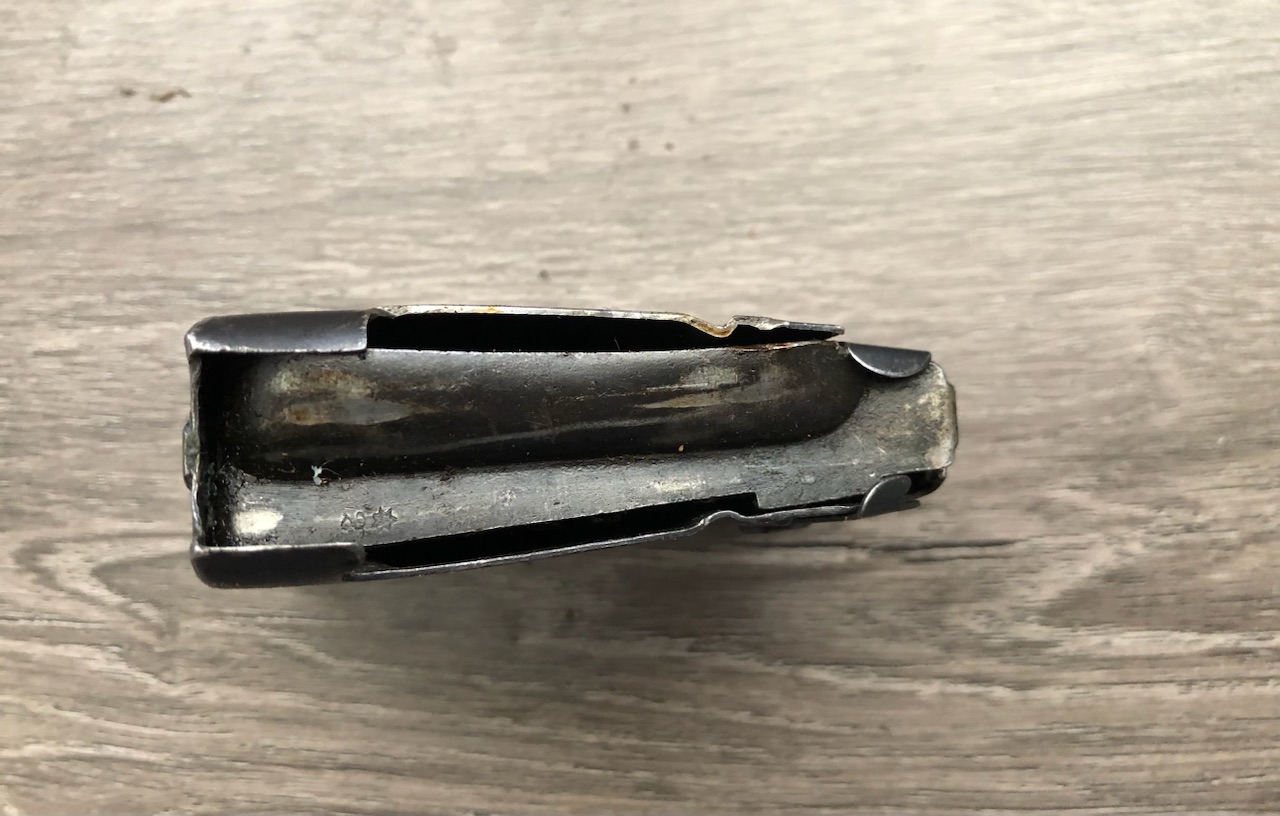

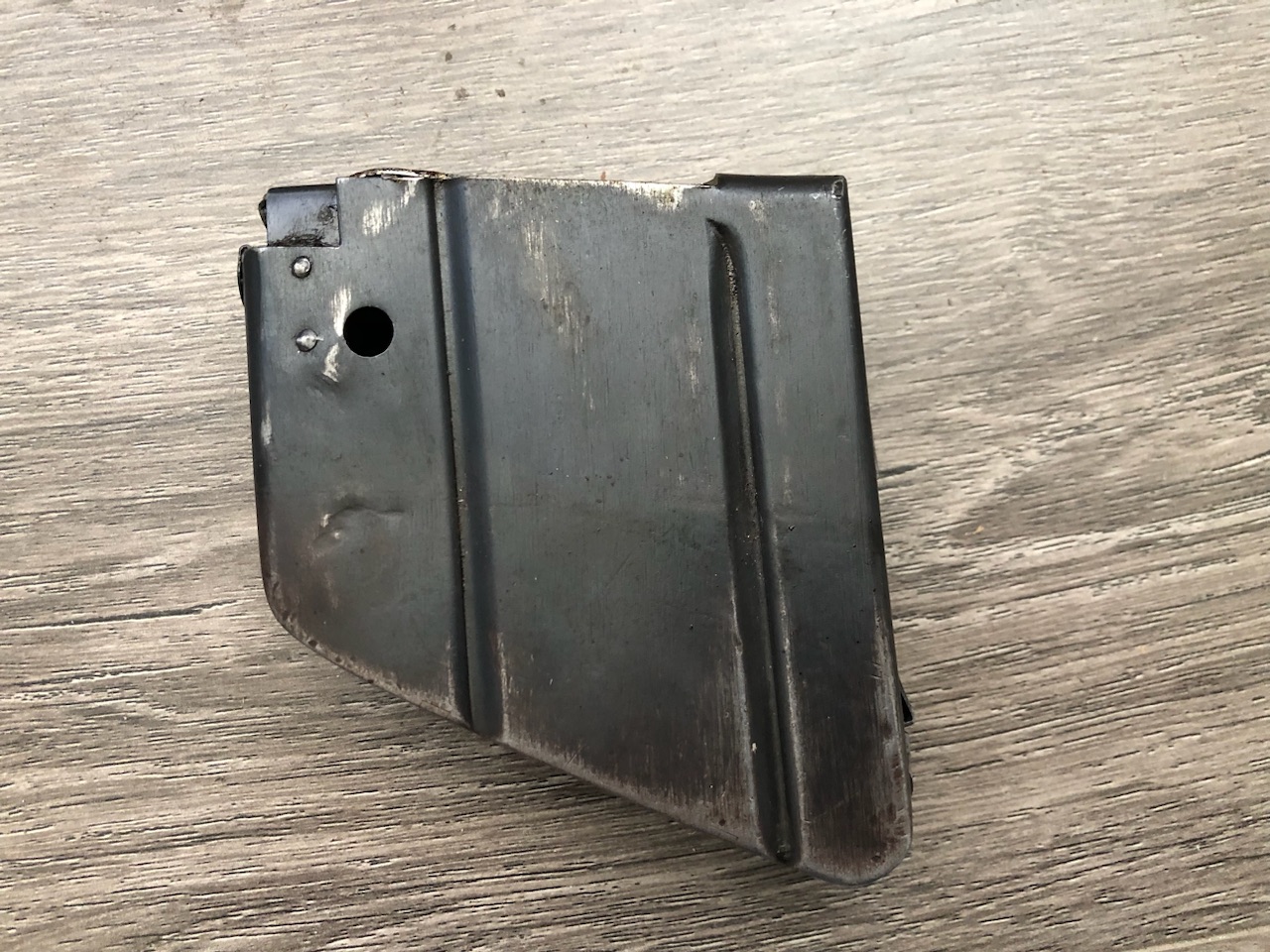

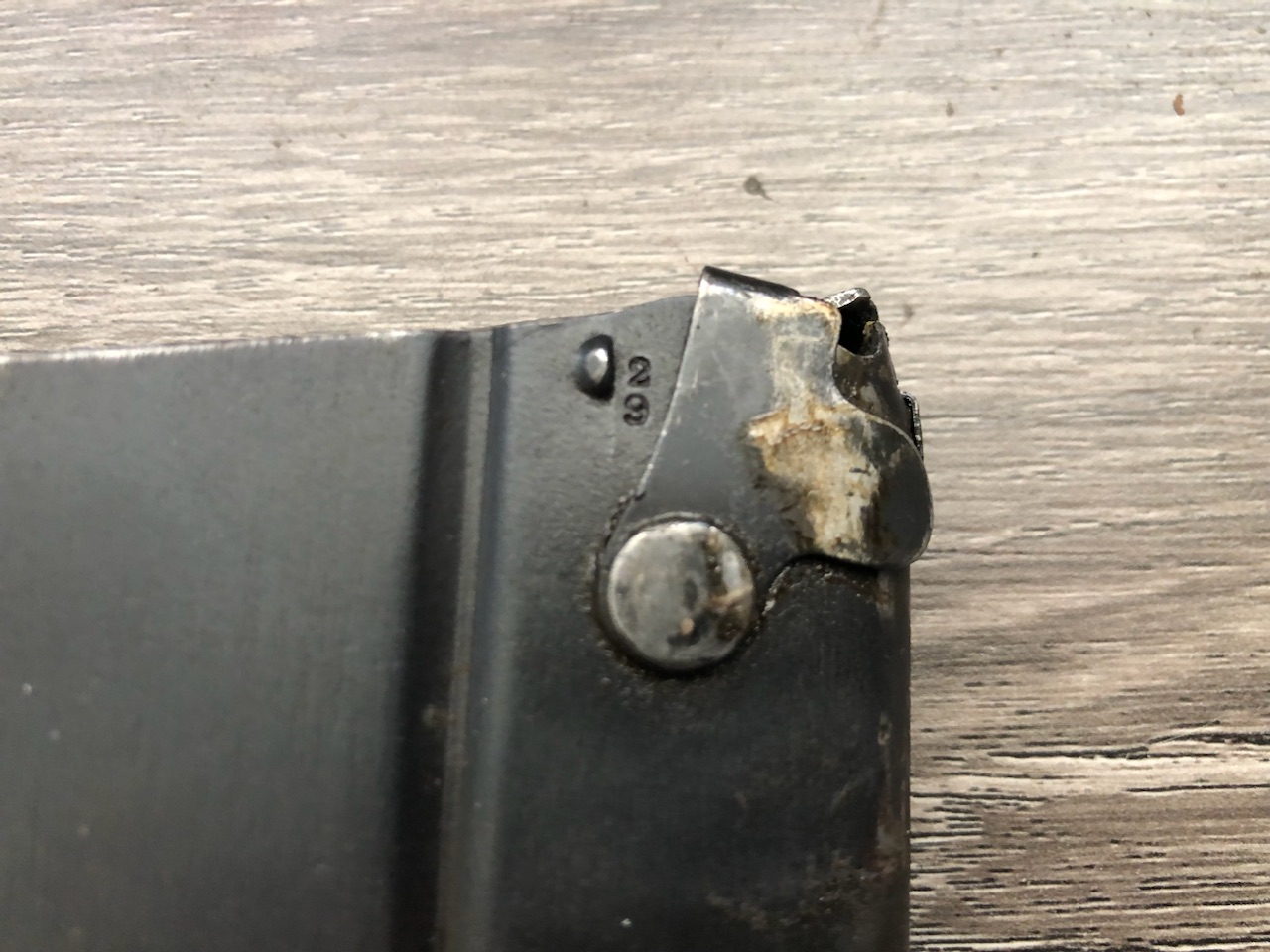

Some interesting details other mag does not have besides the weird fix
SHV
Sergeant Major
Sergeant Major

Posts: 1624
New South Wales

Re: A weird mag or a weird fix? Lee Enfield No.1 MKIII

Post by SHV » 08 Nov 2024, 9:58 am


Both (normal and weird one)fit the rifle nice and tight
SHV
Sergeant Major
Sergeant Major

Posts: 1624
New South Wales

Re: A weird mag or a weird fix? Lee Enfield No.1 MKIII

Post by SHV » 08 Nov 2024, 10:00 am


If someone knows the history please let me know, much appreciated
SHV
Sergeant Major
Sergeant Major

Posts: 1624
New South Wales

Re: A weird mag or a weird fix? Lee Enfield No.1 MKIII

Post by bladeracer » 08 Nov 2024, 12:54 pm

I am no expert but I think that was the modification from when they switched to the MarkVII bullet from the old round-nose bullet. As it doesn't have the lanyard loop I think that makes it a Type 3 magazine.
Practice Strict Gun Control - Precision Counts!
User avatar
bladeracer
Field Marshal
Field Marshal

Posts: 13165
Victoria

Re: A weird mag or a weird fix? Lee Enfield No.1 MKIII

Post by No1Mk3 » 08 Nov 2024, 1:54 pm

What's wierd? Looks to be a normal post-1905 Magazine No 3 for the SMLE Mk1*, movable lip on the right and should have had the fixed lip on the left which has been removed.
No1Mk3
Second Lieutenant
Second Lieutenant

Posts: 2180
Victoria

Re: A weird mag or a weird fix? Lee Enfield No.1 MKIII

Post by No1Mk3 » 08 Nov 2024, 1:59 pm

2 bloody edits to my post for F;s sake! need to get better sleep, post 1905 with the retaining loop removed and case modified Case No 2 with the rivetted spring retainer to Case No 3 specs as bladeracer pointed out..
No1Mk3
Second Lieutenant
Second Lieutenant

Posts: 2180
Victoria

Re: A weird mag or a weird fix? Lee Enfield No.1 MKIII

Post by No1Mk3 » 08 Nov 2024, 2:01 pm

Have a look on the rear of the case under the spring to see if it is still numbered 2 or has been re-stamped as 3, most converted cases were not changed but I have 1 that was.
No1Mk3
Second Lieutenant
Second Lieutenant

Posts: 2180
Victoria

Re: A weird mag or a weird fix? Lee Enfield No.1 MKIII

Post by No1Mk3 » 08 Nov 2024, 2:13 pm

Has Platform No 2 which is std for Case No 3,
No1Mk3
Second Lieutenant
Second Lieutenant

Posts: 2180
Victoria

Re: A weird mag or a weird fix? Lee Enfield No.1 MKIII

Post by SHV » 09 Nov 2024, 12:24 am

Thanks blader and Mk3
You are right
Found an article about the Lee magazines

https://www.artiozen.com/post/lee-enfie ... roductions
SHV
Sergeant Major
Sergeant Major

Posts: 1624
New South Wales
