303-22 load data

Reloading equipment, methods, load data, powder and projectile information.

303-22 load data

Post by 6878mm » 01 Dec 2023, 9:44 am

Does anyone have any load data using ADI powders for this caliber
I KNOW there are several variants of it , I KNOW
I am notsure what oneit is, I am in the process of dertimining what it is
Any data to start will be appreciated
The only inf. that Ihave been abletofind is an old Nick Harvey data,it`s 32gr of 2208 for a 55gr projectile
I willprobably go with that, butI would at least like to know what else there is
6878mm
Private
Private

Posts: 60
New South Wales

Re: 303-22 load data

Post by No1Mk3 » 01 Dec 2023, 12:21 pm

G'day mate, until you know what version you have it is going to be impossible to suggest data, I would recommend you start with Sprinter data until you are certain you have a Falcon, and not one of the many "one off" gunsmith specials.
No1Mk3
Second Lieutenant
Second Lieutenant

Posts: 2076
Victoria

Re: 303-22 load data

Post by 6878mm » 01 Dec 2023, 1:00 pm

I will, what is it??
6878mm
Private
Private

Posts: 60
New South Wales

Re: 303-22 load data

Post by 6878mm » 01 Dec 2023, 2:38 pm

What is sprinter data??
6878mm
Private
Private

Posts: 60
New South Wales

Re: 303-22 load data

Post by Pendous » 01 Dec 2023, 9:46 pm

What is the case length or case capacity?

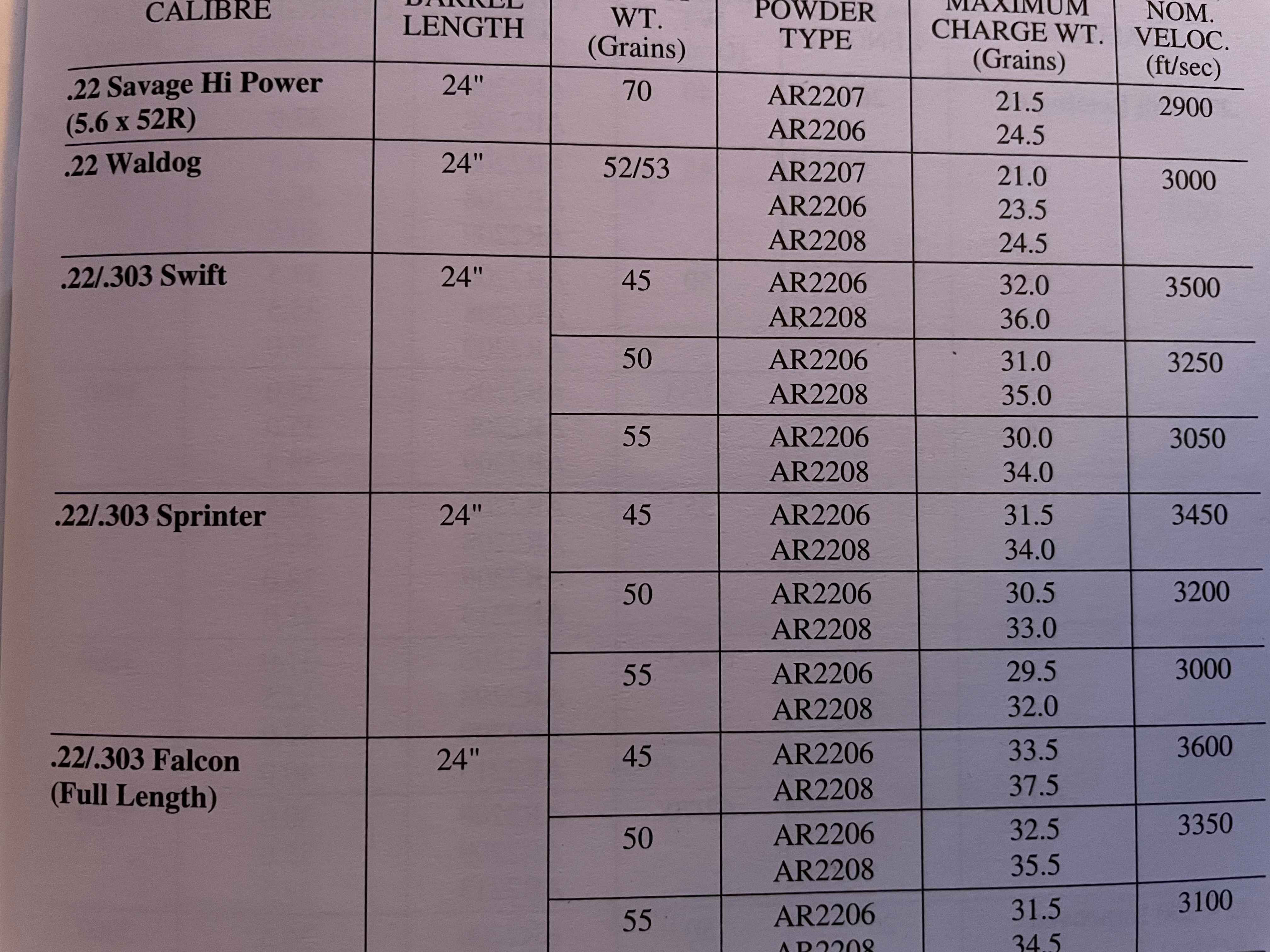

early ADI data
Pendous
Recruit
Recruit

Posts: 35
New South Wales

Re: 303-22 load data

Post by 6878mm » 02 Dec 2023, 12:23 am

Thankyou very, very much
Thisis exactly what I wanted
This looks like itcame out of an ADI book,what year was it
I have the latest and an earlier version, printed in 1996 and they do not list them
Thanyou again
6878mm
Private
Private

Posts: 60
New South Wales

Re: 303-22 load data

Post by Pendous » 02 Dec 2023, 7:33 am

1st Addition ADI,1996 copy is the second.

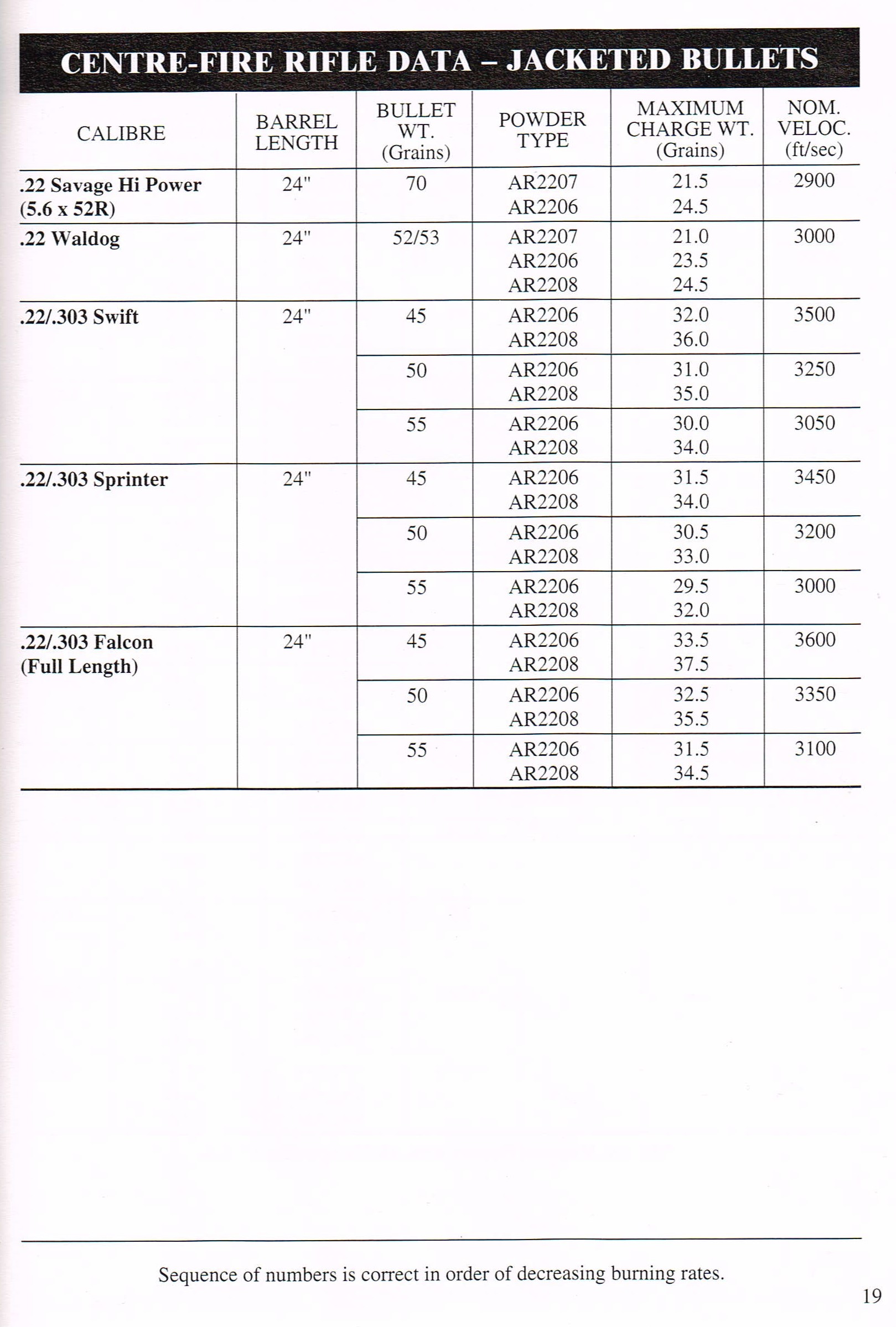

Heres a better copy/scan to print/save.




Pendous
Recruit
Recruit

Posts: 35
New South Wales

Re: 303-22 load data

Post by 6878mm » 02 Dec 2023, 9:59 am

Thankyou very, very much
It`s the 2nd edition that I have
6878mm
Private
Private

Posts: 60
New South Wales

Re: 303-22 load data

Post by bladeracer » 02 Dec 2023, 4:04 pm

6878mm wrote:Does anyone have any load data using ADI powders for this caliber
I KNOW there are several variants of it , I KNOW
I am not sure what one it is, I am in the process of determining what it is
Any data to start will be appreciated
The only inf. that Ihave been able to find is an old Nick Harvey data, it`s 32gr of 2208 for a 55gr projectile
I will probably go with that, but I would at least like to know what else there is


We really need to know what the cartridge is, which powders you want to use, and which bullets.
But I would use AR2206H, start around 30gn or so behind 55gn bullets and work up or down until you find what you want.
Practice Strict Gun Control - Precision Counts!
User avatar
bladeracer
Field Marshal
Field Marshal

Posts: 12618
Victoria

Re: 303-22 load data

Post by straightshooter » 05 Dec 2023, 6:57 am

Waterworth.pdf
(540.03 KiB) Downloaded 72 times

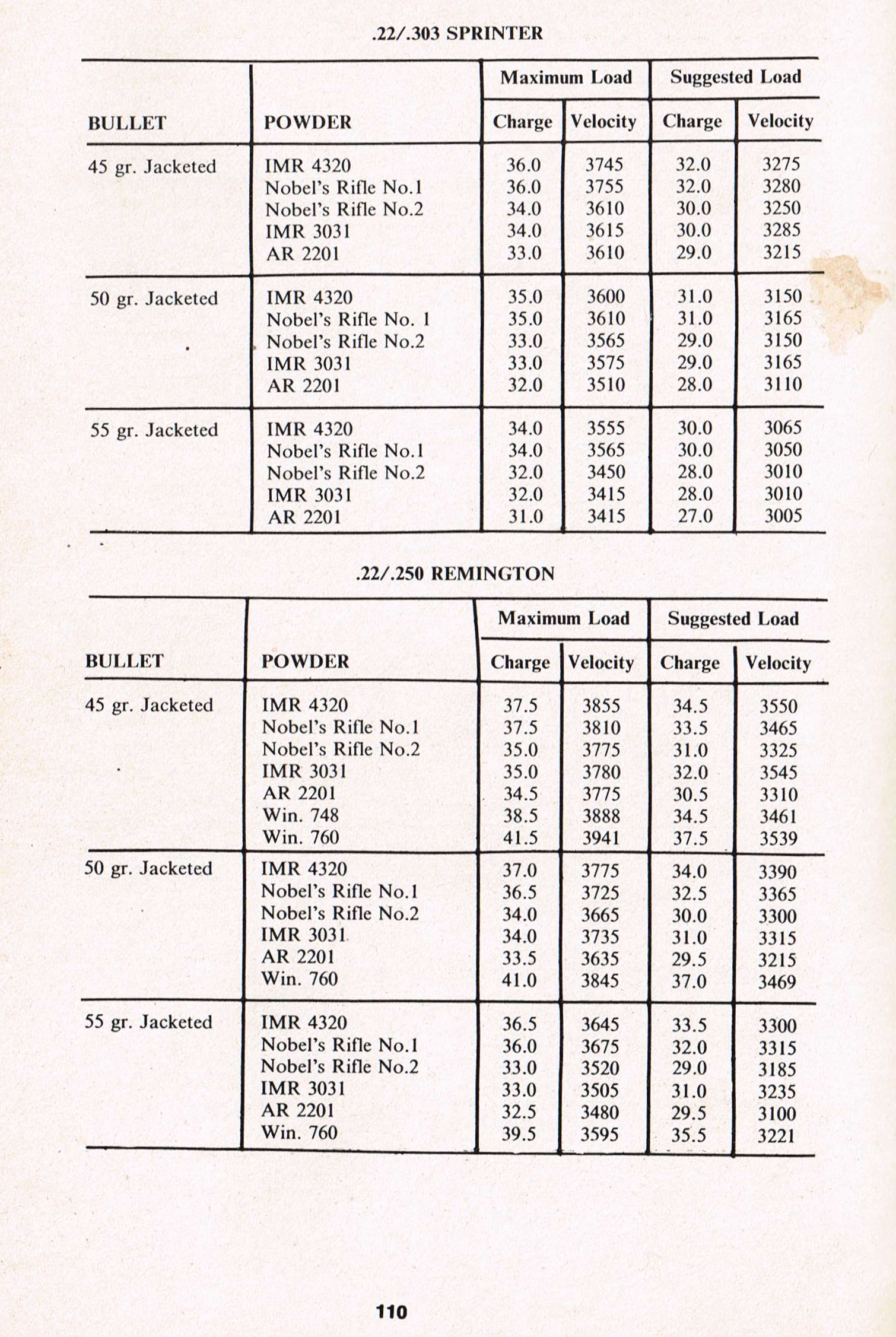

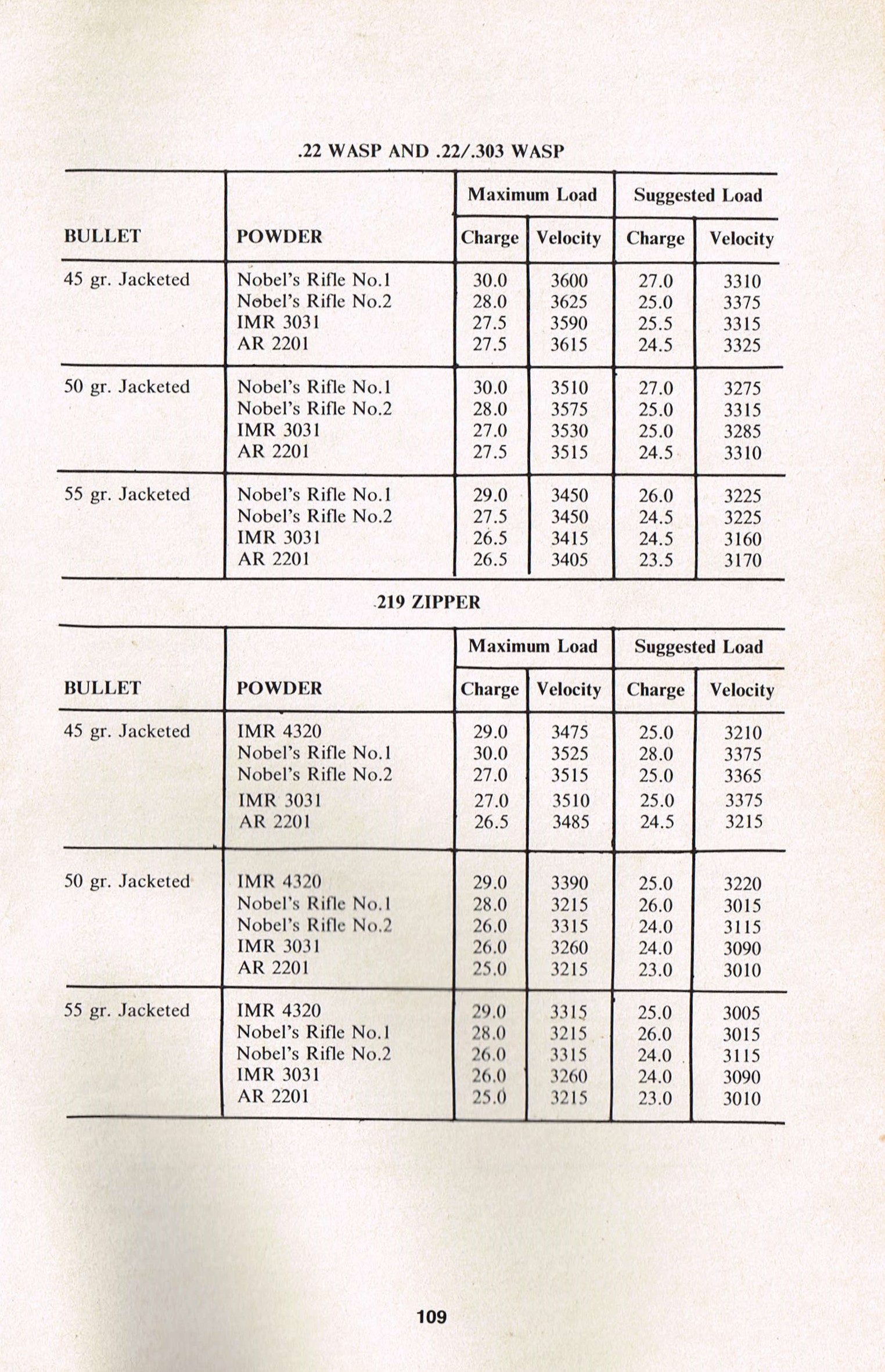

Here is some additional info from a 70's version of Reloading Simplified by Cyril Waterworth.
You might have to do an internet search of burning rate tables to establish equivalent modern powders.
As for the various names applied to a 22/303 I believe the only real issue is whether your case is simply a full length 303 necked down to 22 or a shortened case.
"Anything is possible if you don't know what you are talking about."
"There is no expedient to which a man will not resort to avoid the real labor of thinking." Sir Joshua Reynolds
straightshooter
Warrant Officer C2
Warrant Officer C2

Posts: 1244
New South Wales

Re: 303-22 load data

Post by Oldbloke » 05 Dec 2023, 7:55 am

You might get lucky here.

Burn Rates_121211.pdf
(34.28 KiB) Downloaded 80 times
The greatest invention in the history of man is beer.
https://youtu.be/2v3QrUvYj-Y
Member. SFFP, Shooters Union.
SSAA, the powerful gun lobby. :lol: :lol: :lol: :lol:
Hunt safe.
User avatar
Oldbloke
Field Marshal
Field Marshal

Posts: 11068
Victoria

Re: 303-22 load data

Post by Oldbloke » 05 Dec 2023, 8:51 am

bladeracer wrote:
We really need to know what the cartridge is, which powders you want to use, and which bullets.
But I would use AR2206H, start around 30gn or so behind 55gn bullets and work up or down until you find what you want.


Agree. AR2206H is the GOTO.
The greatest invention in the history of man is beer.
https://youtu.be/2v3QrUvYj-Y
Member. SFFP, Shooters Union.
SSAA, the powerful gun lobby. :lol: :lol: :lol: :lol:
Hunt safe.
User avatar
Oldbloke
Field Marshal
Field Marshal

Posts: 11068
Victoria

Re: 303-22 load data

Post by Blr243 » 05 Dec 2023, 9:01 am

Been 30 yrs since I loaded for 30322. Just looking though the data and speeds I always knew it does not match 22250 performance but it’s certainly up there. I guess in history it may have been chosen as a roo gun.
Blr243
Brigadier
Brigadier

Posts: 4454
Queensland

Re: 303-22 load data

Post by Blr243 » 05 Dec 2023, 9:02 am

Been 30 yrs since I loaded for 30322. Just looking though the data and speeds I always knew it does not match 22250 performance but it’s certainly up there. I guess in history it may have been chosen as a roo gun.
Blr243
Brigadier
Brigadier

Posts: 4454
Queensland

Re: 303-22 load data

Post by Pendous » 05 Dec 2023, 9:13 pm

Scan_20231205 (2).jpg
Scan_20231205 (2).jpg (740.55 KiB) Viewed 3281 times
Pendous
Recruit
Recruit

Posts: 35
New South Wales
